Stainless-Steel-Round-Pipe

Overview

Stainless Steel Round pipes are made by machining, welding, grinding and polishing. It is generally used because of its superior strength and greater resistance to corrosion. JNB produces high-quality Round Pipes for various customer requirements.

Grades

Austenite Stainless Steel Grades	304/304L, 316/316L, 304H, 304LN, 316Ti, 310S, 904L, 317L, 321/321H, 347/347H
Martensite Stainless Steel Grades	446, 410S
Duplex Stainless Steel Grades	S31803, S32205, S32750, Duplex 2205, Super Duplex 2507

Thickness: 0.10mm ~ 4mm
Length: As per Customer Requirement
Surface Finish: Pickled, Bright, Matt, Polished, Mirror.
Chemical Properties: Read More
Mechanical Prperties : Read More

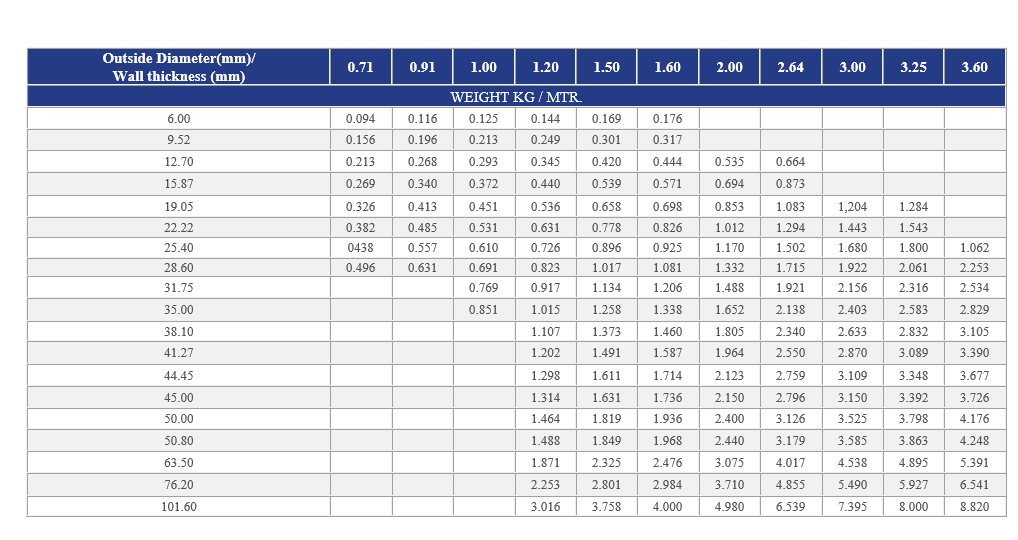

Outside Diameter(mm)/ Wall thickness (mm)	0.71	0.91	1.00	1.20	1.50	1.60	2.00	2.64	3.00	3.25	3.60
WEIGHT KG / MTR.
6.00	0.094	0.116	0.125	0.144	0.169	0.176
9.52	0.156	0.196	0.213	0.249	0.301	0.317
12.70	0.213	0.268	0.293	0.345	0.420	0.444	0.535	0.664
15.87	0.269	0.340	0.372	0.440	0.539	0.571	0.694	0.873
19.05	0.326	0.413	0.451	0.536	0.658	0.698	0.853	1.083	1,204	1.284
22.22	0.382	0.485	0.531	0.631	0.778	0.826	1.012	1.294	1.443	1.543
25.40	0438	0.557	0.610	0.726	0.896	0.925	1.170	1.502	1.680	1.800	1.062
28.60	0.496	0.631	0.691	0.823	1.017	1.081	1.332	1.715	1.922	2.061	2.253
31.75			0.769	0.917	1.134	1.206	1.488	1.921	2.156	2.316	2.534
35.00			0.851	1.015	1.258	1.338	1.652	2.138	2.403	2.583	2.829
38.10				1.107	1.373	1.460	1.805	2.340	2.633	2.832	3.105
41.27				1.202	1.491	1.587	1.964	2.550	2.870	3.089	3.390
44.45				1.298	1.611	1.714	2.123	2.759	3.109	3.348	3.677
45.00				1.314	1.631	1.736	2.150	2.796	3.150	3.392	3.726
50.00				1.464	1.819	1.936	2.400	3.126	3.525	3.798	4.176
50.80				1.488	1.849	1.968	2.440	3.179	3.585	3.863	4.248
63.50				1.871	2.325	2.476	3.075	4.017	4.538	4.895	5.391
76.20				2.253	2.801	2.984	3.710	4.855	5.490	5.927	6.541
101.60				3.016	3.758	4.000	4.980	6.539	7.395	8.000	8.820

STANDARD NOMINAL BORE & SCHEDULES OF PIPES

Normal Pipe Size N.B In Inch	Outside Diameter in MM.	Sch. 5s W.T in mm	Sch. 10s W.T in mm	Sch.40s W.T. in mm	Sch. 80s W.T. in mm
3/8	17.15		1.65	2.31	3.20
1/2	21.34	1.65	2.11	2.77	3.73
3/4	26.67	1.65	2.11	2.87	3.91
1	33.40	1.65	2.77	3.38	4.55
1-1/4	42.61	1.65	2.77	3.56	4.85
1-1/2	48.26	1.65	2.77	3.68	5.08
2	60.30	1.65	2.77	3.91	5.54
2-1/2	73.03	2.11	3.05	5.16	7.01
3	88.90	2.11	3.05	5.49	7.60
4	114.30	2.11	3.05	6.02	8.56
6	168.28	2.77	3.40	7.11	10.97

OUTER DIAMETER		WALL THICKNESS
OUTER DIAMETER		SWG		BWG
MM	INCHES	NO.	MM	NO.	MM
6.35	1/4"
9.5	3/8"
12.70	1/2"	10	3.251	10	3.404
15.875	5/8"
19.05	3/4"	12	2.642	12	2.769
25.40	1"	14	2.032	14	2.108
31.75	11/4"
38.10	1 1/2"	16	1.626	16	1.651
50.80	2"
63.50	2 1/2"	18	1.219	18	1.245
76.20	3"	20	0.914	20	0.889
88.90	3 1/2"
101.60	4"
NOTE : Other sizes are available on request. Customer are requested to contact us with their specific requirments.

Please check with us for specifications not listed above

Applications

Architectural-Applications-1

Pharmaceutical-Industries-1

Pressure-Vessels-1

Submersible-Pumps-1
